50-5M15-6A5, Timing Pulley

50-5M15-6A5 - Aluminum Powerhouse®HTD® Pulleys

Product Details for 50-5M15-6A5

Comparable to: A 6A25-050NF1512, A6A25-050NF1512, P50-5M-15AL, 78821054, 50-5M-09 X 3/8

Click to Enlarge

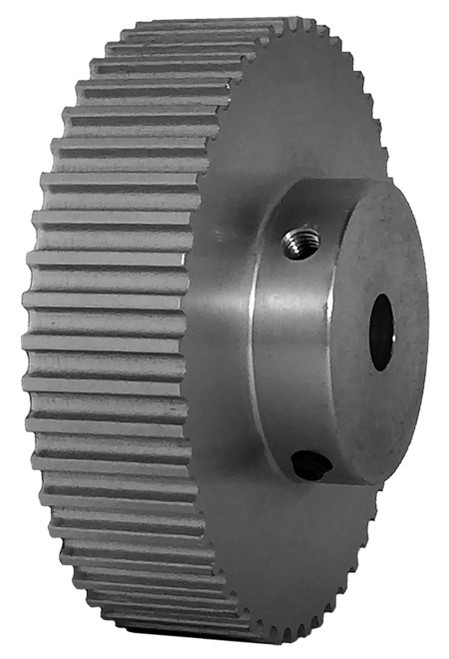

50-5M15-6A5, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 50-5M15-6A5 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 50-5M15-6A5
Teeth 50
Tooth Style HTD 5mm
For Belt Width (mm) 15
Type 6
Material Aluminum
Finish Clear Anodized
Bore Type Finished Bore
Bore (in) 3/8 Inch Finished Bore
Pitch Diameter (in) 3.133
Outside Diameter (in) 3.088
Face Width (in) 0.781
Overall Length (in) 1.187
Hub Diameter (in) 1.500
Min. Bore (in) 0.375
Unit System Inch
MOQ 1
Weight (lb) 0.65
Part Number Cross Reference A 6A25-050NF1512, A6A25-050NF1512, P50-5M-15AL, 78821054, 50-5M-09 X 3/8
Set Screw Quantity 2
