50-5P25-6FS6, Timing Pulley

50-5P25-6FS6 - Steel Powerhouse® Pulleys

Product Details for 50-5P25-6FS6

Comparable to: P50-5MGT-25-MPB, 77095050

Click to Enlarge

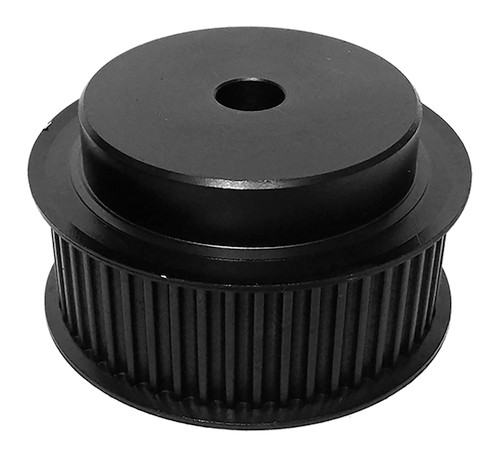

50-5P25-6FS6, Timing Pulley, Steel, Black Oxide,

Learn more about 50-5P25-6FS6 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 50-5P25-6FS6
Teeth 50
Tooth Style 5P
For Belt Width (mm) 25
Type 6F
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type Minimum Plain Bore
Bore (in) 1/2 Inch Minimum Plain Bore
Pitch Diameter (in) 3.133
Outside Diameter (in) 3.088
Flange Diameter (in) 3.330
Face Width (in) 1.280
Overall Length (in) 1.780
Hub Diameter (in) 2.500
Min. Bore (in) 0.500
Pulley Belt Width (in) 1.100
Unit System Inch
MOQ 1
Weight (lb) 2.97
Part Number Cross Reference P50-5MGT-25-MPB, 77095050
