50-8MX12-2012, Timing Pulley

50-8MX12-2012 - Cast Iron Powerhouse® MX Pulleys

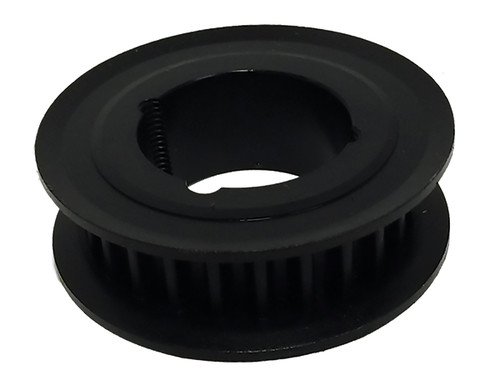

50-8MX12-2012

Click to Enlarge

50-8MX12-2012, Timing Pulley, Cast Iron, Black Oxide,

Learn more about 50-8MX12-2012 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 50-8MX12-2012
Teeth 50
Tooth Style 8MX
For Belt Width (mm) 12
Type B1F
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type TL
Bore (in) 2012
Pitch Diameter (in) 5.013
Outside Diameter (in) 4.950
Flange Diameter (in) 5.320
Face Width (in) 0.850
Overall Length (in) 1.250
Min. Bore (in) 0.500
Pulley Belt Width (in) 0.610
Unit System Inch
Bushing 2012
P.D. (mm) 127.00
O.D. (mm) 125.70
MOQ 1
Weight (lb) 3.92
Part Number Cross Reference 8MX-50S-12, 8MX50S12-2012, TB 8M-50S-12, B8MCS-50-12, 50G-8M-12-2012, 20296082, 481896, 8MPC50S12, GTR-50G-8M-12, GTR-50G-8M-12, 50G8M12, 8MX-50S-12-2012, 50-8MX12-2012

Related Products

Comparable to: 8MX-50S-12, 8MX50S12-2012, TB 8M-50S-12, B8MCS-50-12, 50G-8M-12-2012, 20296082, 481896, 8MPC50S12, GTR-50G-8M-12, GTR-50G-8M-12, 50G8M12, 8MX-50S-12-2012, 50-8MX12-2012
