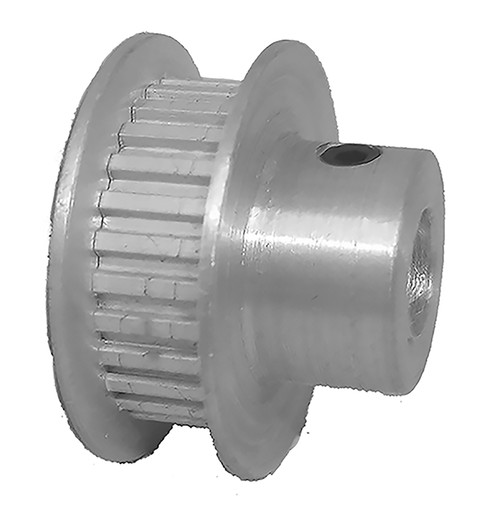

50LT187-6FA3, Timing Pulley

50LT187-6FA3 - Aluminum Imperial Pitch Pulleys

50LT187-6FA3

Click to Enlarge

50LT187-6FA3, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 50LT187-6FA3 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 50LT187-6FA3
Teeth 50
Tooth Style LT
For Belt Width (in) 0.1875
Type 6F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 0.250
Bore Description 1/4 Inch Finished Bore
Pitch Diameter (in) 1.299
Outside Diameter (in) 1.279
Flange Diameter (in) 1.470
Face Width (in) 0.340
Overall Length (in) 0.656
Hub Diameter (in) 0.988
Min. Bore (in) 0.25
Pulley Belt Width (in) 0.220
Unit System Inch
P.D. (mm) 33.00
O.D. (mm) 32.50
MOQ 1
Weight (lb) 0.10
Part Number Cross Reference A 6A6-50DF01808, A6A6-50DF01808, 50LT-187 X 1/4-6F, 50M187-1A X 1/4, 50LT187-6FA3, 50LT187-6FA3
Set Screw Quantity 2
