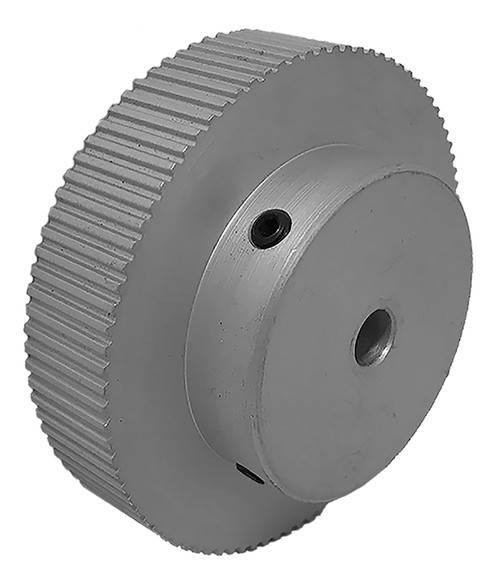

50LT312-6A3, Timing Pulley

50LT312-6A3 - Aluminum Imperial Pitch Pulleys

50LT312-6A3

50LT312-6A3 - Aluminum Imperial Pitch Pulleys Line Drawing

Click to Enlarge

50LT312-6A3, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 50LT312-6A3 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 50LT312-6A3
Teeth 50
Tooth Style LT
For Belt Width (in) 0.3125
Type 6
Material Aluminum
Finish Clear Anodized
Bore Type Finished Bore
Bore (in) 0.250
Bore Description 1/4 Inch Finished Bore
Pitch Diameter (in) 1.299
Outside Diameter (in) 1.279
Face Width (in) 0.875
Overall Length (in) 0.926
Hub Diameter (in) 0.926
Min. Bore (in) 0.25
Unit System Inch
P.D. (mm) 33.00
O.D. (mm) 32.50
MOQ 1
Weight (lb) 0.12
Part Number Cross Reference A 6A6-50NF03108, A6A6-50NF03108, 50M312-2A X 1/4, 50LT312-6A3
Set Screw Quantity 2
