50LT312-6FA3, Timing Pulley

50LT312-6FA3 - Aluminum Imperial Pitch Pulleys

Product Details for 50LT312-6FA3

Comparable to: A 6A6-50DF03108, A6A6-50DF03108, 50M312-1A X 1/4

Click to Enlarge

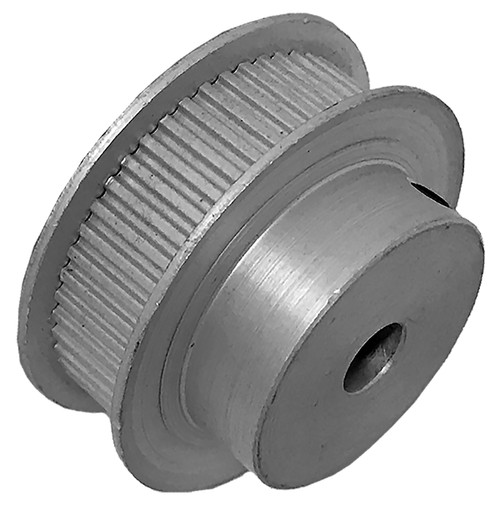

50LT312-6FA3, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 50LT312-6FA3 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 50LT312-6FA3
Teeth 50
Tooth Style LT
For Belt Width (in) 0.3125
Type 6F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 1/4 Inch Finished Bore
Pitch Diameter (in) 1.300
Outside Diameter (in) 1.286
Flange Diameter (in) 1.470
Face Width (in) 0.465
Overall Length (in) 0.781
Hub Diameter (in) 0.988
Min. Bore (in) 0.250
Pulley Belt Width (in) 0.350
Unit System Inch
MOQ 1
Weight (lb) 0.09
Part Number Cross Reference A 6A6-50DF03108, A6A6-50DF03108, 50M312-1A X 1/4
Set Screw Quantity 2
