50MP025-6FA3, Timing Pulley

50MP025-6FA3 - Aluminum Imperial Pitch Pulleys

Product Details for 50MP025-6FA3

Comparable to: A 6A16-050DF2508, A6A16-050DF2508, TP7A4W4-50

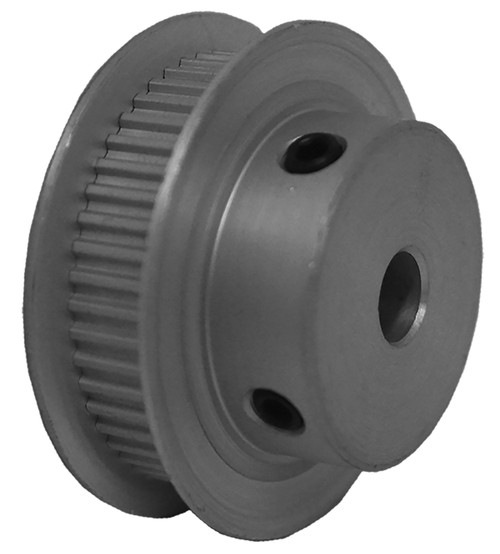

Click to Enlarge

50MP025-6FA3, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 50MP025-6FA3 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 50MP025-6FA3
Teeth 50
Tooth Style MXL
For Belt Width (in) 0.2500
Type 6F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 1/4 Inch Finished Bore
Pitch Diameter (in) 1.273
Outside Diameter (in) 1.253
Flange Diameter (in) 1.470
Face Width (in) 0.405
Overall Length (in) 0.719
Hub Diameter (in) 0.966
Min. Bore (in) 0.250
Pulley Belt Width (in) 0.290
Unit System Inch
MOQ 1
Weight (lb) 0.08
Part Number Cross Reference A 6A16-050DF2508, A6A16-050DF2508, TP7A4W4-50
Set Screw Quantity 2
