50XL037-6WA4 Imperial Pitch Pulleys

50XL037-6WA4, A 6A 3-50NF03710, A6A3-50NF03710, PB50XL037, 78231522

Product Details for 50XL037-6WA4

Comparable to: 50XL037-6WA4, A 6A 3-50NF03710, A6A3-50NF03710, PB50XL037, 78231522

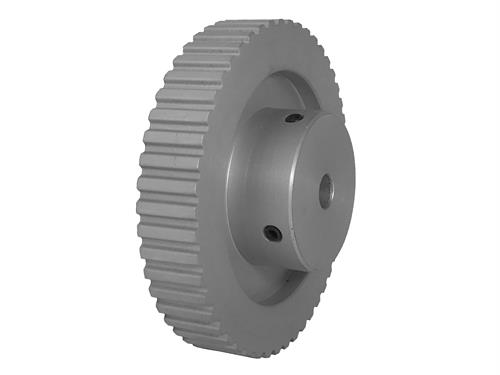

50XL037-6WA4, Timing Pulley, Powerhouse Timing, 5/16 Inch Bore, Aluminum

Specifications

Product Number 50XL037-6WA4
Teeth 50
Tooth Style XL
For Belt Width (in) 0.375
Type 6
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 5/16 Inch Finished Bore
Pitch Diameter (in) 3.183
Outside Diameter (in) 3.163
Face Width (in) 0.563
Overall Length (in) 1.000
Hub Diameter (in) 1.500
Set Screw 2 x 10-32 @ 90°
Min. Bore (in) 0.563
Unit System Inch
Max. Bore (in) 1.25
Weight (lb) 0.41
Part Number Cross Reference 50XL037-6WA4, A 6A 3-50NF03710, A6A3-50NF03710, PB50XL037, 78231522

Documentation

Download Catalog 2015_BBMAN_CATALOG_22.pdf
General Characteristics gen_char.html
Pulley Tolerances pulley_tol.html
Part Number Nomenclature Chart part_number_explain.pdf
Drive Alignment Guide proper alignment.pdf
For custom parts click here custom.html
REACH Certification 50XL037-6WA4_REACH_cert
RoHS Certification 50XL037-6WA4_RoHS_cert
