52-14P85-3535, Timing Pulley

52-14P85-3535

Click to Enlarge

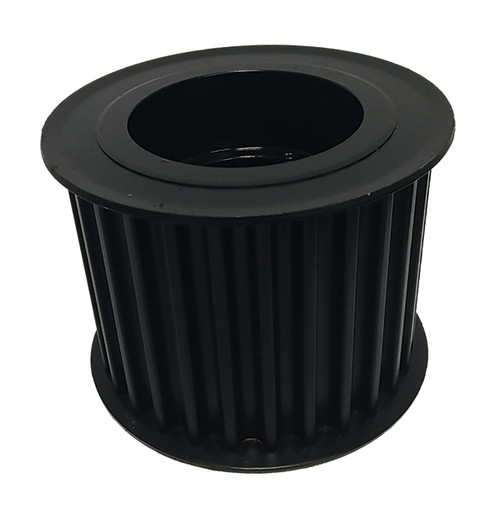

52-14P85-3535, Timing Pulley, Cast Iron, Black Oxide,

Learn more about 52-14P85-3535 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	52-14P85-3535
Teeth	52
Tooth Style	14P
For Belt Width (mm)	85.00
Type	A1F
Material	Ductile Iron
Finish	Black Oxide
Flange Material	Steel
Bore Type	TL
Bore Description	Bored for 3535 Bushing
Pitch Diameter (in)	9.123
Outside Diameter (in)	9.013
Flange Diameter (in)	9.687
Face Width (in)	4.000
Overall Length (in)	4.000
Min. Bore (in)	1.1875
Pulley Belt Width (in)	3.680
Unit System	Inch
Bushing	3535
P.D. (mm)	232.00
O.D. (mm)	228.90
MOQ	1
Weight (lb)	42.15
Part Number Cross Reference	P52-14MGT-85, B5214M85TL, P52-14M-85-3535, 20182834, P52-14M-85-3535 HT250 SPKT, P5214M85TL, 52-14P85-3535, 112954, 52-14P85-3535
