52-5P25-1210, Timing Pulley

52-5P25-1210 - Cast Iron Powerhouse® Pulleys

Product Details for 52-5P25-1210

Comparable to: P52-5MGT-25, 77092052, P52-5M-25-1210 QTE, 21014971

Click to Enlarge

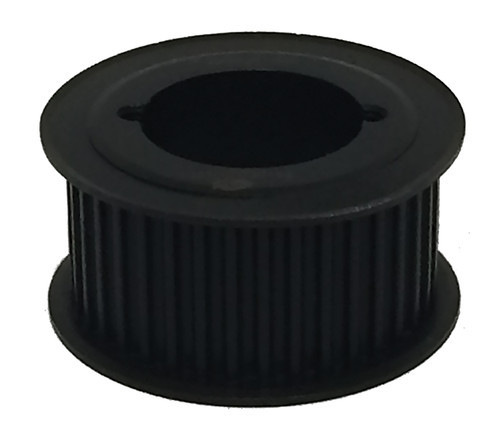

52-5P25-1210, Timing Pulley, Cast Iron, Black Oxide,

Learn more about 52-5P25-1210 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 52-5P25-1210
Teeth 52
Tooth Style 5P
For Belt Width (mm) 25
Type A1F
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type TL
Bore (in) 1210
Pitch Diameter (in) 3.258
Outside Diameter (in) 3.213
Flange Diameter (in) 3.566
Face Width (in) 1.280
Overall Length (in) 1.280
Min. Bore (in) 0.500
Pulley Belt Width (in) 1.100
Unit System Inch
Bushing 1210
MOQ 1
Weight (lb) 1.59
Part Number Cross Reference P52-5MGT-25, 77092052, P52-5M-25-1210 QTE, 21014971
