53-14MX125-4535, Timing Pulley

53-14MX125-4535 - Cast Iron Powerhouse® MX Pulleys

Product Details for 53-14MX125-4535

Comparable to: 53-14MX125-4535, 14MX-53S-125, B14MCS-53-1

Click to Enlarge

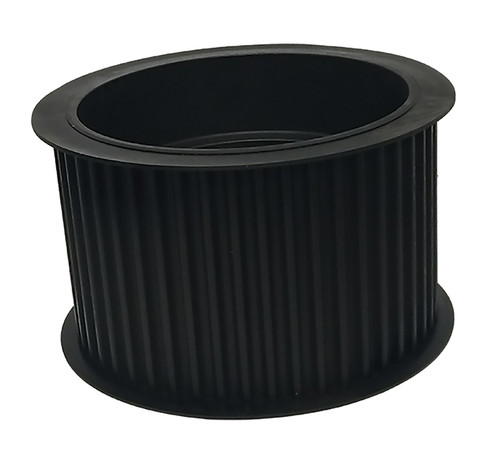

53-14MX125-4535, Timing Pulley, Cast Iron, Black Oxide,

Learn more about 53-14MX125-4535 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 53-14MX125-4535
Teeth 53
Tooth Style GT2 14mm
For Belt Width (mm) 125.000
Type A1F
Material Cast Iron
Finish Black Oxide
Flange Material Steel
Bore Type TL
Bore (in) 4535
Pitch Diameter (in) 9.299
Outside Diameter (in) 9.189
Flange Diameter (in) 9.687
Face Width (in) 5.609
Overall Length (in) 5.609
Min. Bore (in) 1.9375
Pulley Belt Width (in) 5.290
Unit System Inch
Bushing 4535
Max. Bore (in) 5.000
Weight (lb) 46.00
Part Number Cross Reference 53-14MX125-4535, 14MX-53S-125, B14MCS-53-1
