53-8MX12-2012, Timing Pulley

53-8MX12-2012 - Cast Iron Powerhouse® MX Pulleys

Product Details for 53-8MX12-2012

Comparable to: 8MX-53S-12, 77181053, 8MX53S12-2012, 2764868, B8MCS-53-12, 53G-8M-12-2012, 20839749, 481897, 8MPC53S12, 53G8M12

Click to Enlarge

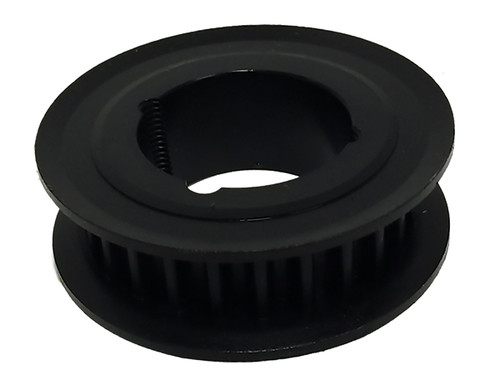

53-8MX12-2012, Timing Pulley, Cast Iron, Black Oxide,

Learn more about 53-8MX12-2012 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 53-8MX12-2012
Teeth 53
Tooth Style 8MX
For Belt Width (mm) 12
Type B1F
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type TL
Bore (in) 2012
Pitch Diameter (in) 5.314
Outside Diameter (in) 5.251
Flange Diameter (in) 5.625
Face Width (in) 0.850
Overall Length (in) 1.250
Min. Bore (in) 0.500
Pulley Belt Width (in) 0.610
Unit System Inch
Bushing 2012
MOQ 1
Weight (lb) 4.50
Part Number Cross Reference 8MX-53S-12, 77181053, 8MX53S12-2012, 2764868, B8MCS-53-12, 53G-8M-12-2012, 20839749, 481897, 8MPC53S12, 53G8M12
