56-14P55-3020, Timing Pulley

56-14P55-3020

Click to Enlarge

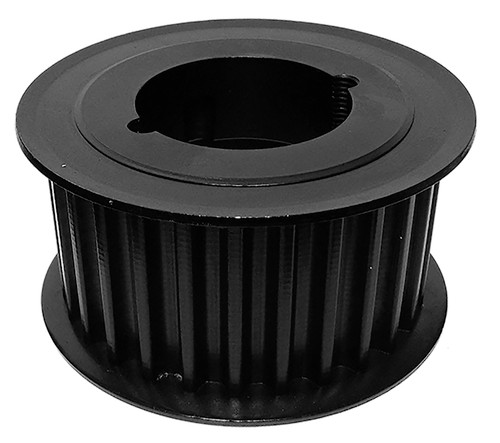

56-14P55-3020, Timing Pulley, Cast Iron, Black Oxide,

Learn more about 56-14P55-3020 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	56-14P55-3020
Teeth	56
Tooth Style	14P
For Belt Width (mm)	55.00
Type	A1F
Material	Cast Iron
Finish	Black Oxide
Flange Material	Steel
Bore Type	TL
Bore Description	Bored for 3020 Bushing
Pitch Diameter (in)	9.825
Outside Diameter (in)	9.715
Flange Diameter (in)	10.355
Face Width (in)	2.750
Overall Length (in)	2.750
Min. Bore (in)	0.875
Pulley Belt Width (in)	2.430
Unit System	Inch
Bushing	3020
P.D. (mm)	250.00
O.D. (mm)	246.80
MOQ	1
Weight (lb)	34.87
Part Number Cross Reference	P56-14MGT-55, B5614M55TL, P56-14M-55-3020, 20182837, P56-14M-55-3020 HT250 SPKT, P5614M55TL, 56-14P55-3020, 112933, 56-14P55-3020
