56-2P03-6FA3, Timing Pulley

56-2P03-6FA3 - Aluminum Powerhouse® Pulleys

Product Details for 56-2P03-6FA3

Comparable to: A 6A51-056DF0308, A6A51-056DF0308

Click to Enlarge

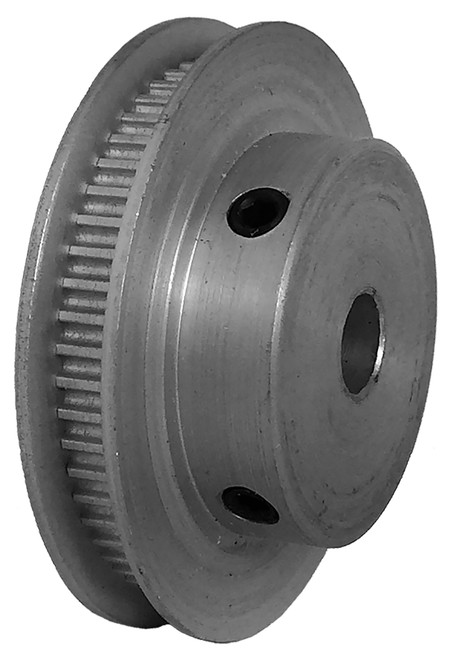

56-2P03-6FA3, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 56-2P03-6FA3 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 56-2P03-6FA3
Teeth 56
Tooth Style 2P
For Belt Width (mm) 3
Type 6F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 1/4 Inch Finished Bore
Pitch Diameter (in) 1.404
Outside Diameter (in) 1.384
Flange Diameter (in) 1.575
Face Width (in) 0.275
Overall Length (in) 0.531
Hub Diameter (in) 1.030
Min. Bore (in) 0.250
Pulley Belt Width (in) 0.160
Unit System Inch
MOQ 1
Weight (lb) 0.07
Part Number Cross Reference A 6A51-056DF0308, A6A51-056DF0308
Set Screw Quantity 2
