56-2P09-6FA3, Timing Pulley

56-2P09-6FA3

Click to Enlarge

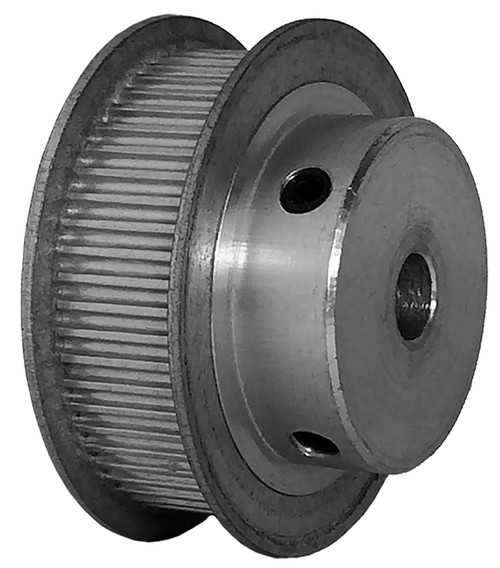

56-2P09-6FA3, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 56-2P09-6FA3 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	56-2P09-6FA3
Teeth	56
Tooth Style	2P
For Belt Width (mm)	9.00
Type	6F
Material	Aluminum
Finish	Clear Anodized
Flange Material	Aluminum
Bore Type	Finished Bore
Bore (in)	0.250
Bore Description	1/4 Inch Finished Bore
Pitch Diameter (in)	1.404
Outside Diameter (in)	1.384
Flange Diameter (in)	1.575
Face Width (in)	0.530
Overall Length (in)	0.843
Hub Diameter (in)	1.030
Min. Bore (in)	0.25
Pulley Belt Width (in)	0.410
Unit System	Inch
Belt Width (mm)	10.40
P.D. (mm)	36.00
O.D. (mm)	35.10
Flange Diameter (mm)	40.00
Face Width (mm)	13.10
Overall Length (mm)	21.40
Hub Diameter (mm)	26.20
MOQ	1
Weight (lb)	0.11
Part Number Cross Reference	A 6A51-056DF0908, A6A51-056DF0908, 2MR-56S-09, 2MR-56S-09, TP2A3W9-56, 56-2GT06-1A X 1/4, 56-2P09-6FA3, 56-2P09-6FA3
Set Screw Quantity	2
