56-5M15-6A5, Timing Pulley

56-5M15-6A5

Click to Enlarge

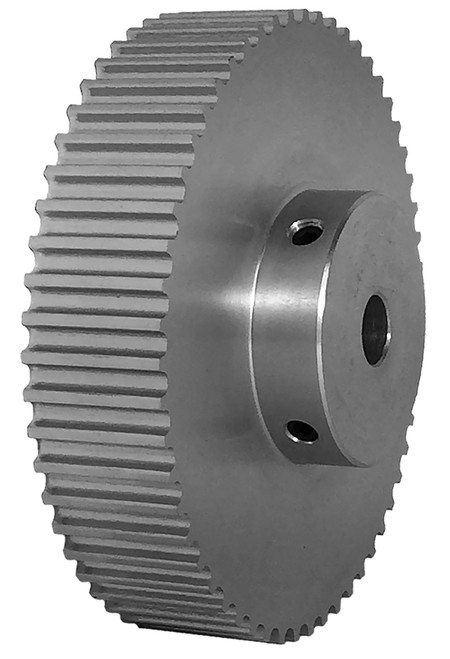

56-5M15-6A5, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 56-5M15-6A5 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	56-5M15-6A5
Teeth	56
Tooth Style	HTD5mm
For Belt Width (mm)	15.00
Type	6
Material	Aluminum
Finish	Clear Anodized
Bore Type	Finished Bore
Bore (in)	0.375
Bore Description	3/8 Inch Finished Bore
Pitch Diameter (in)	3.509
Outside Diameter (in)	3.464
Face Width (in)	0.781
Overall Length (in)	1.187
Hub Diameter (in)	1.500
Min. Bore (in)	0.375
Unit System	Inch
P.D. (mm)	89.00
O.D. (mm)	88.00
MOQ	1
Weight (lb)	0.81
Part Number Cross Reference	A 6A25-056NF1512, A6A25-056NF1512, P56-5M-15AL, 56M5-L015-6, 56-5M-09 X 3/8, P56-5M-15, 56-5M15-6A5, 56-5M15-6A5
Set Screw Quantity	2
