56-5P15-6A5, Timing Pulley

56-5P15-6A5 - Aluminum Powerhouse® Pulleys

Product Details for 56-5P15-6A5

Comparable to: A 6A55-056NF1516, A6A55-056NF1516, P56-5MGT-15AL, 78451556

Click to Enlarge

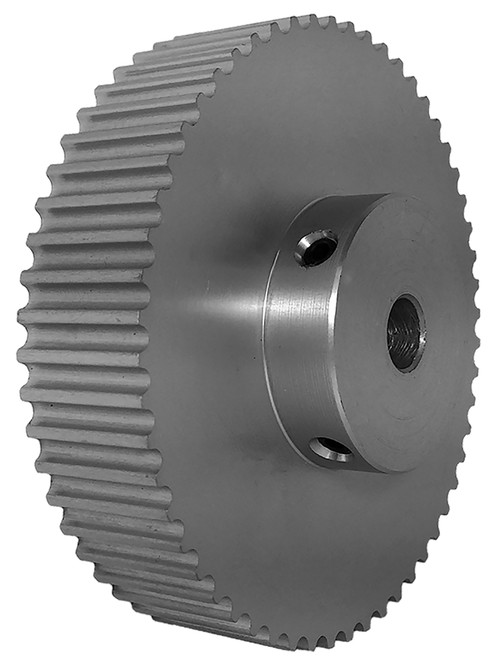

56-5P15-6A5, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 56-5P15-6A5 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 56-5P15-6A5
Teeth 56
Tooth Style 5P
For Belt Width (mm) 15
Type 6
Material Aluminum
Finish Clear Anodized
Bore Type Finished Bore
Bore (in) 3/8 Inch Finished Bore
Pitch Diameter (in) 3.509
Outside Diameter (in) 3.464
Face Width (in) 0.781
Overall Length (in) 1.187
Hub Diameter (in) 1.500
Min. Bore (in) 0.375
Unit System Inch
MOQ 1
Weight (lb) 0.80
Part Number Cross Reference A 6A55-056NF1516, A6A55-056NF1516, P56-5MGT-15AL, 78451556
Set Screw Quantity 2
