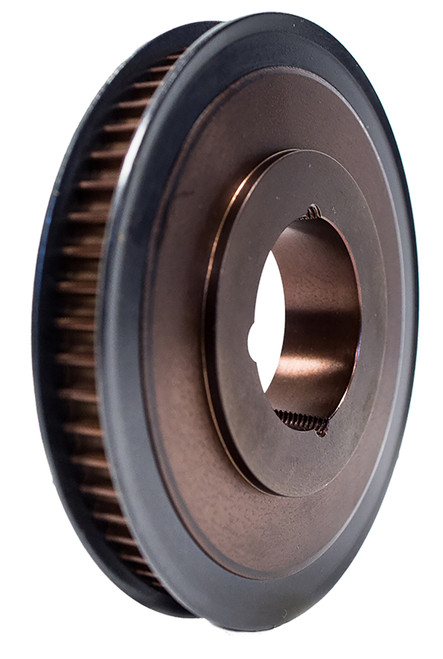

56-8P12-1610, Timing Pulley

56-8P12-1610

Click to Enlarge

56-8P12-1610, Timing Pulley, Cast Iron, Black Oxide,

Learn more about 56-8P12-1610 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	56-8P12-1610
Teeth	56
Tooth Style	8P
For Belt Width (mm)	12.00
Type	B1F
Material	Ductile Iron
Finish	Black Oxide
Flange Material	Steel
Bore Type	TL
Bore Description	Bored for 1610 Bushing
Pitch Diameter (in)	5.614
Outside Diameter (in)	5.560
Flange Diameter (in)	5.945
Face Width (in)	0.750
Overall Length (in)	1.000
Min. Bore (in)	0.5
Pulley Belt Width (in)	0.610
Unit System	Inch
Bushing	1610
P.D. (mm)	143.00
O.D. (mm)	141.20
MOQ	1
Weight (lb)	4.75
Part Number Cross Reference	P56-8MGT-12, 56-8P12-1610, 56-8P12-1610
