56-8P30-2012, Timing Pulley

56-8P30-2012 - Cast Iron Powerhouse® Pulleys

56-8P30-2012

Click to Enlarge

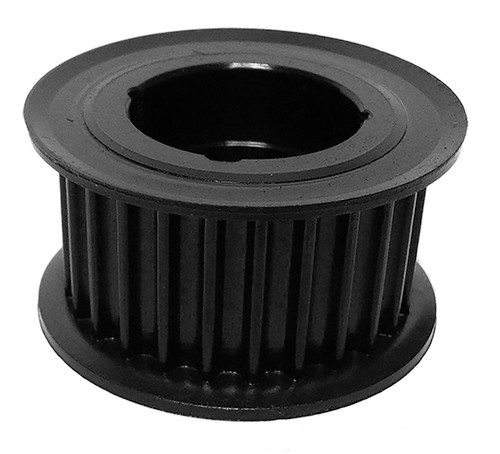

56-8P30-2012, Timing Pulley, Cast Iron, Black Oxide,

Learn more about 56-8P30-2012 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 56-8P30-2012
Teeth 56
Tooth Style 8P
For Belt Width (mm) 30.00
Type A1F
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type TL
Bore Description Bored for 2012 Bushing
Pitch Diameter (in) 5.614
Outside Diameter (in) 5.560
Flange Diameter (in) 5.945
Face Width (in) 1.500
Overall Length (in) 1.500
Min. Bore (in) 0.5
Pulley Belt Width (in) 1.260
Unit System Inch
Bushing 2012
P.D. (mm) 143.00
O.D. (mm) 141.20
MOQ 1
Weight (lb) 6.25
Part Number Cross Reference P56-8MGT-30, B568M30TL, P56-8M-30-2012, 20182840, P56-8M-30-2012 HT250 SPKT, P568M30TL, 56-8P30-2012, 112879, 56-8P30-2012
