56-8P85-2517, Timing Pulley

56-8P85-2517 - Cast Iron Powerhouse® Pulleys

56-8P85-2517

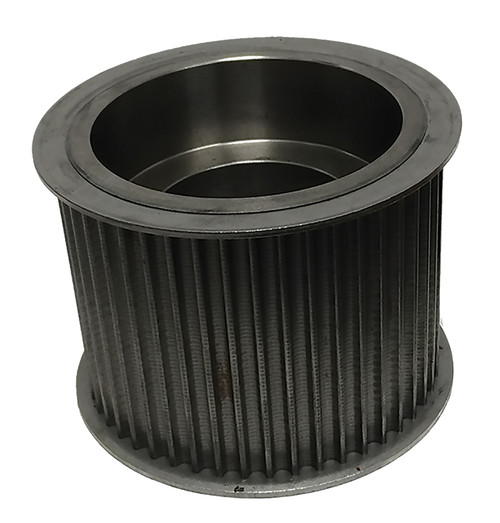

Click to Enlarge

56-8P85-2517, Timing Pulley, Cast Iron, Black Oxide,

Learn more about 56-8P85-2517 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 56-8P85-2517
Teeth 56
Tooth Style 8P
For Belt Width (mm) 85
Type A1F
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type TL
Bore (in) 2517
Pitch Diameter (in) 5.614
Outside Diameter (in) 5.560
Flange Diameter (in) 5.945
Face Width (in) 3.750
Overall Length (in) 3.750
Min. Bore (in) 0.500
Pulley Belt Width (in) 3.500
Unit System Inch
Bushing 2517
P.D. (mm) 143.00
O.D. (mm) 141.20
MOQ 1
Weight (lb) 9.95
Part Number Cross Reference P56-8MGT-85, B568M85TL, P56-8M-85-2517, 20182842, 56-8P85-2517
