5B44SD, V-Belt Pulley

5B44SD, 4.4-5B-SD, 20179270, 445B, 5B44

Product Details for 5B44SD

Comparable to: QD5A4.2/B4.4, 5B44.SD, 5B44SD, 4.4-5B-SD, 20179270, 445B, 5B4.4, 5/B440SD, 5B44, 5BQ44

Click to Enlarge

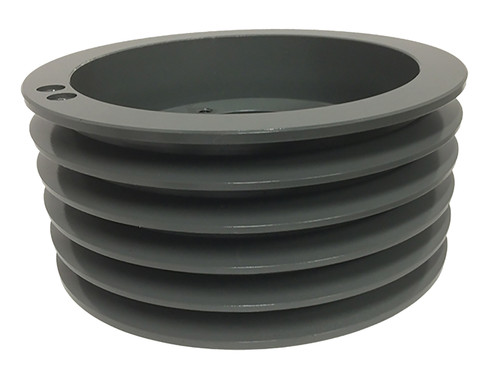

5B44SD, V-Belt Pulley, Cast Iron

Learn more about 5B44SD V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 5B44SD
Type E1
Material Cast Iron
Bore Type QD
Bore (in) SD
Outside Diameter (in) 4.750
Face Width (in) 4.000
Min. Bore (in) 0.500
Unit System Inch
Bushing SD
Max. Bore (in) 2.000
MOQ 1
Pitch Dia. "A" 4.000
Pitch Dia. "B" 4.400
Sheave Type A-B Combination
For Belt Type A or B
Weight (lb) 8.50
Part Number Cross Reference QD5A4.2/B4.4, 5B44.SD, 5B44SD, 4.4-5B-SD, 20179270, 445B, 5B4.4, 5/B440SD, 5B44, 5BQ44
Grooves 5
