5B54SK, V-Belt Pulley

5B54SK, 5.4-5B-SK, 20179326, 545B, 5B54

Product Details for 5B54SK

Comparable to: 5B54SK, QD5A5.2/B5.4, 5.4-5B-SK, 20179326, 545B, 5B

Click to Enlarge

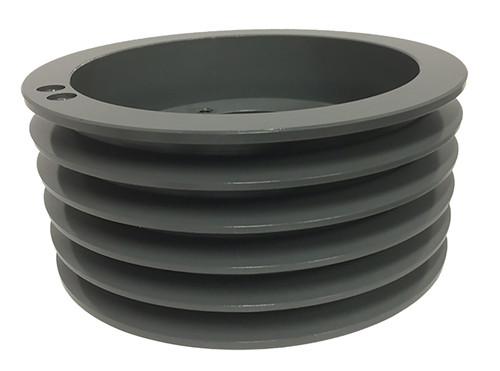

5B54SK, V-Belt Pulley, Cast Iron

Learn more about 5B54SK V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 5B54SK
Type A1
Material Cast Iron
Bore Type QD
Bore (in) SK
Outside Diameter (in) 5.750
Face Width (in) 4.000
Min. Bore (in) 0.500
Unit System Inch
Bushing SK
Max. Bore (in) 2.625
Pitch Dia. "A" 5.000
Pitch Dia. "B" 5.400
For Belt Type A or B
Weight (lb) 10.80
Part Number Cross Reference 5B54SK, QD5A5.2/B5.4, 5.4-5B-SK, 20179326, 545B, 5B
