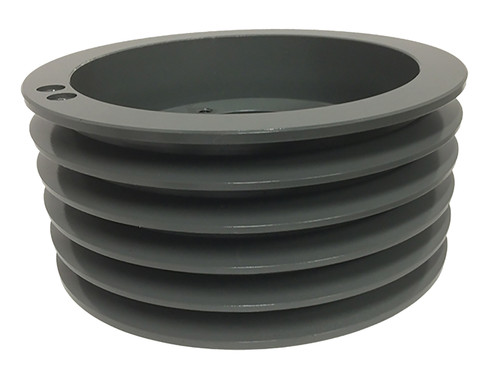

5B58SK, V-Belt Pulley

5B58SK

5B58SK, V-Belt Pulley, Cast Iron

Learn more about 5B58SK V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	5B58SK
Type	A-1
Material	Cast Iron
Bore Type	QD
Bore Description	Bored for SK Bushing
Outside Diameter (in)	6.150
Face Width (in)	4.000
Min. Bore (in)	0.5
Unit System	Inch
Bushing	SK
MOQ	1
Pitch Dia. "A"	5.400
Pitch Dia. "B"	5.800
Sheave Type	A-B Combination
For Belt Type	A or B
Weight (lb)	12.00
Part Number Cross Reference	QD5A5.6/B5.8, 5B58.SK, 5B58SK, 5.8-5B-SK, 20179347, 5B58-SK SHEAVE, 585B, 5B5.8, 5.8-5B-SK, 5/B580SK, 5B58, 5BQ58, 5B58SK, 5B58SK, 455687, 5B58SK
Grooves	5
