5B60SK, V-Belt Pulley

5B60SK, 6.0-5B-SK, 20179372, 605B, 5B60

Product Details for 5B60SK

Comparable to: QD5A5.8/B6.0, 5B60.SK, 5B60SK, 6.0-5B-SK, 20179372, 605B, 5B6.0, 5/B600SK, 5B60, 5BQ60

Click to Enlarge

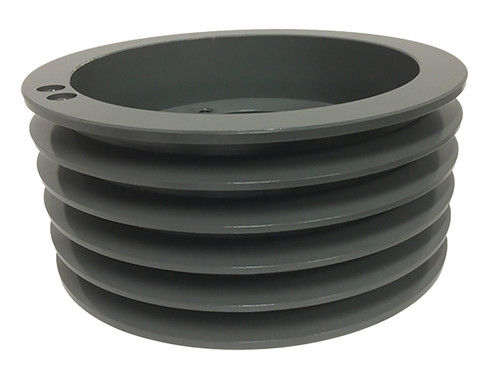

5B60SK, V-Belt Pulley, Cast Iron

Learn more about 5B60SK V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 5B60SK
Type A1
Material Cast Iron
Bore Type QD
Bore (in) SK
Outside Diameter (in) 6.350
Face Width (in) 4.000
Min. Bore (in) 0.500
Unit System Inch
Bushing SK
Max. Bore (in) 2.625
MOQ 1
Pitch Dia. "A" 5.600
Pitch Dia. "B" 6.000
Sheave Type A-B Combination
For Belt Type A or B
Weight (lb) 14.00
Part Number Cross Reference QD5A5.8/B6.0, 5B60.SK, 5B60SK, 6.0-5B-SK, 20179372, 605B, 5B6.0, 5/B600SK, 5B60, 5BQ60
Grooves 5
