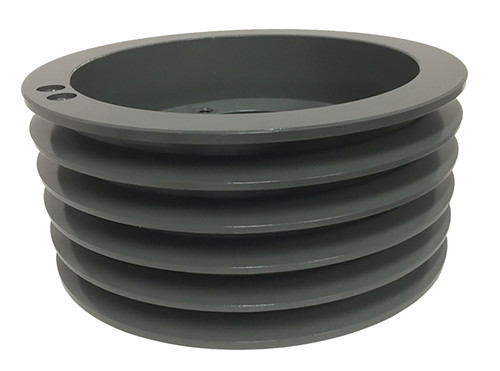

5B62SK, V-Belt Pulley

5B62SK

5B62SK, V-Belt Pulley, Cast Iron

Learn more about 5B62SK V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	5B62SK
Type	A-1
Material	Cast Iron
Bore Type	QD
Bore Description	Bored for SK Bushing
Outside Diameter (in)	6.550
Face Width (in)	4.000
Min. Bore (in)	0.5
Unit System	Inch
Bushing	SK
MOQ	1
Pitch Dia. "A"	5.800
Pitch Dia. "B"	6.200
Sheave Type	A-B Combination
For Belt Type	A or B
Weight (lb)	15.00
Part Number Cross Reference	QD5A6.0/B6.2, 5B62.SK, 5B62SK, 6.2-5B-SK, 20179383, 5B62-SK SHEAVE, 625B, 5B6.2, 6.2-5B-SK, 5/B620SK, 5B62, 5BQ62, 5B62SK, 5B62SK, 455689, 5B62SK
Grooves	5
