5B64SK, V-Belt Pulley

5B64SK, 6.4-5B-SK, 20179392, 645B, 5B64

Product Details for 5B64SK

Comparable to: QD5A6.2/B6.4, 5B64.SK, 5B64SK, 6.4-5B-SK, 20179392, 645B, 5B6.4, 5/B640SK, 5B64, 5BQ64

Click to Enlarge

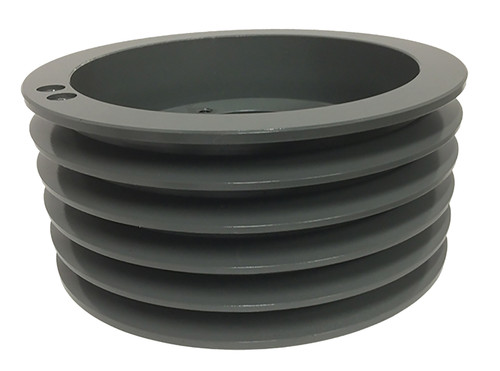

5B64SK, V-Belt Pulley, Cast Iron

Learn more about 5B64SK V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 5B64SK
Type A1
Material Cast Iron
Bore Type QD
Bore (in) SK
Outside Diameter (in) 6.750
Face Width (in) 4.000
Min. Bore (in) 0.500
Unit System Inch
Bushing SK
Max. Bore (in) 2.625
MOQ 1
Pitch Dia. "A" 6.000
Pitch Dia. "B" 6.400
Sheave Type A-B Combination
For Belt Type A or B
Weight (lb) 16.00
Part Number Cross Reference QD5A6.2/B6.4, 5B64.SK, 5B64SK, 6.4-5B-SK, 20179392, 645B, 5B6.4, 5/B640SK, 5B64, 5BQ64
Grooves 5
