60-14MX20-3525 Powerhouse™ Mx Pulleys

60-14MX20-3525, 14MX-60S-20, B14MCS-60-20, 60G-14M-20-TL3525, 20839853

Product Details for 60-14MX20-3525

Comparable to: 60-14MX20-3525, 14MX-60S-20, B14MCS-60-20, 60G-14M-20-TL3525, 20839853

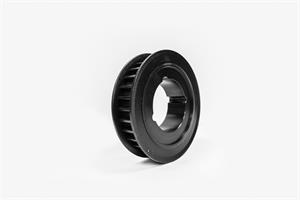

60-14MX20-3525, Timing Pulley, Powerhouse MX, 3525 Bushing, Cast Iron

Specifications

Product Number 60-14MX20-3525
Teeth 60
Tooth Style GT2 14mm
For Belt Width (mm) 20.000
Type B1F
Material Cast Iron
Finish Black Oxide
Flange Material Steel
Bore Type TL
Bore (in) 3525
Pitch Diameter (in) 10.527
Outside Diameter (in) 10.417
Flange Diameter (in) 11.067
Face Width (in) 1.359
Overall Length (in) 2.500
Pulley Belt Width (in) 1.040
Unit System Inch
Bushing 3525
Weight (lb) 27.50
List Price (1-9 Qty.) (USD) 232.61
Discount Price (10-24 Qty.) (USD) 203.54
Discount Price (25-49 Qty.) (USD) 180.28
Part Number Cross Reference 60-14MX20-3525, 14MX-60S-20, B14MCS-60-20, 60G-14M-20-TL3525, 20839853

Documentation

Download Catalog 2015_BBMAN_CATALOG_167.pdf
General Characteristics gen_char.html
Pulley Tolerances pulley_tol.html
Part Number Nomenclature Chart part_number_explain.pdf
Keyway Standards and Tolerances keyway_specs.pdf
Drive Alignment Guide proper alignment.pdf
For custom parts click here custom.html
REACH Certification 60-14MX20-3525_REACH_cert
RoHS Certification 60-14MX20-3525_RoHS_cert
