60-14P85-3535 Powerhouse™ Pulleys

60-14P85-3535, P60-14MGT-85, B6014M85TL, P60-14M-85-3535, 20182846

Product Details for 60-14P85-3535

Comparable to: 60-14P85-3535, P60-14MGT-85, B6014M85TL, P60-14M-85-3535, 20182846

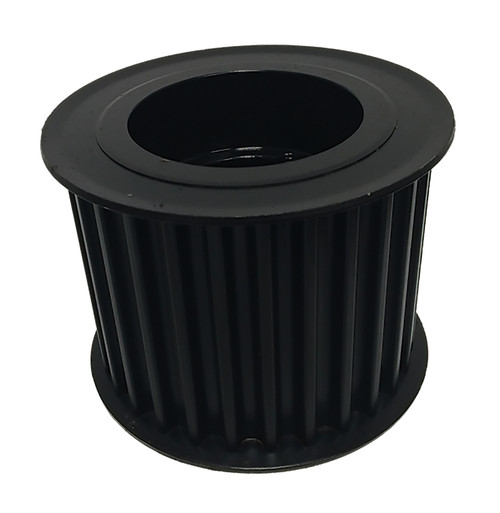

60-14P85-3535, Timing Pulley, Powerhouse, 3535 Bushing, Cast Iron

Specifications

Product Number 60-14P85-3535
Teeth 60
Tooth Style GT 14mm
For Belt Width (mm) 85.000
Type A1F
Material Cast Iron
Finish Black Oxide
Flange Material Steel
Bore Type TL
Bore (in) 3535
Pitch Diameter (in) 10.527
Outside Diameter (in) 10.417
Flange Diameter (in) 11.067
Face Width (in) 4.000
Overall Length (in) 4.000
Pulley Belt Width (in) 3.680
Unit System Inch
Bushing 3535
Weight (lb) 62.40
List Price (1-9 Qty.) (USD) 290.77
Discount Price (10-24 Qty.) (USD) 261.7
Discount Price (25-49 Qty.) (USD) 232.62
Part Number Cross Reference 60-14P85-3535, P60-14MGT-85, B6014M85TL, P60-14M-85-3535, 20182846

Documentation

Download Catalog 2015_BBMAN_CATALOG_147.pdf
General Characteristics gen_char.html
Pulley Tolerances pulley_tol.html
Part Number Nomenclature Chart part_number_explain.pdf
Keyway Standards and Tolerances keyway_specs.pdf
Drive Alignment Guide proper alignment.pdf
For custom parts click here custom.html
REACH Certification 60-14P85-3535_REACH_cert
RoHS Certification 60-14P85-3535_RoHS_cert
