60-2P06-6A3 Powerhouse™ Pulleys

60-2P06-6A3, A 6A51-060NF0608, TP2A3H6-60

Product Details for 60-2P06-6A3

Comparable to: 60-2P06-6A3, A 6A51-060NF0608, TP2A3H6-60

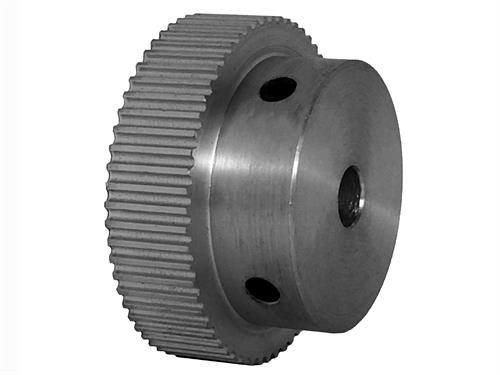

60-2P06-6A3, Timing Pulley, Powerhouse, 1/4 Inch Bore, Aluminum

Specifications

Product Number 60-2P06-6A3
Teeth 60
Tooth Style GT 2mm
For Belt Width (mm) 6.000
Type 6
Material Aluminum
Finish Clear Anodized
Bore Type Finished Bore
Bore (in) 0.25
Pitch Diameter (in) 1.504
Outside Diameter (in) 1.484
Face Width (in) 0.375
Overall Length (in) 0.750
Hub Diameter (in) 1.148
Set Screw 2 x 8-32 @ 90°
Min. Bore (in) 0.25
Pulley Belt Width (in) 0.375
Unit System Inch
Weight (lb) 0.16
List Price (1-9 Qty.) (USD) 9.98
Discount Price (10-24 Qty.) (USD) 9.48
Discount Price (25-49 Qty.) (USD) 7.98
Discount Price (50-99 Qty.) (USD) 6.48
Discount Price (100-249 Qty.) (USD) 5.99
Part Number Cross Reference 60-2P06-6A3, A 6A51-060NF0608, TP2A3H6-60

Documentation

Download Catalog 2015_BBMAN_CATALOG_124.pdf
General Characteristics gen_char.html
Pulley Tolerances pulley_tol.html
Part Number Nomenclature Chart part_number_explain.pdf
Drive Alignment Guide proper alignment.pdf
For custom parts click here custom.html
REACH Certification 60-2P06-6A3_REACH_cert
RoHS Certification 60-2P06-6A3_RoHS_cert
