60-2P09-6FA3, Timing Pulley

60-2P09-6FA3 - Aluminum Powerhouse® Pulleys

Product Details for 60-2P09-6FA3

Comparable to: 60-2P09-6FA3, A 6A51-060DF0908, A6A51-060DF0908, 2MR-60S-09, 78426064, TP2A3W9-

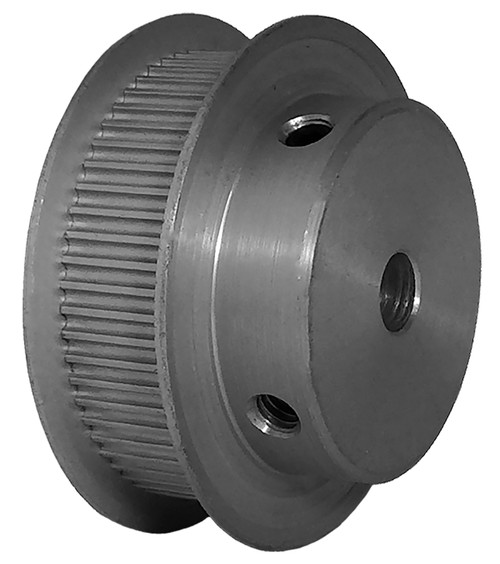

Click to Enlarge

60-2P09-6FA3, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 60-2P09-6FA3 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 60-2P09-6FA3
Teeth 60
Tooth Style GT 2mm
For Belt Width (mm) 9.000
Type 6F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 1/4 Inch Finished Bore
Pitch Diameter (in) 1.504
Outside Diameter (in) 1.484
Flange Diameter (in) 1.730
Face Width (in) 0.530
Overall Length (in) 0.843
Hub Diameter (in) 1.222
Set Screw 2 x 8-32 @ 90°
Min. Bore (in) 0.250
Pulley Belt Width (in) 0.410
Unit System Inch
Max. Bore (in) 0.972
Weight (lb) 0.13
Part Number Cross Reference 60-2P09-6FA3, A 6A51-060DF0908, A6A51-060DF0908, 2MR-60S-09, 78426064, TP2A3W9-
