60-5P09-6A5, Timing Pulley

60-5P09-6A5 - Aluminum Powerhouse® Pulleys

Product Details for 60-5P09-6A5

Comparable to: 60-5P09-6A5, A 6A55-060NF0916, A6A55-060NF0916, P60-5MGT-09AL, 78450960

Click to Enlarge

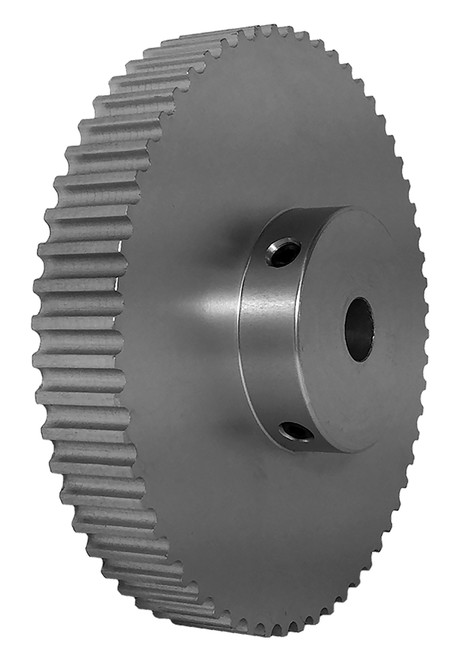

60-5P09-6A5, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 60-5P09-6A5 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 60-5P09-6A5
Teeth 60
Tooth Style GT 5mm
For Belt Width (mm) 9.000
Type 6
Material Aluminum
Finish Clear Anodized
Bore Type Finished Bore
Bore (in) 3/8 Inch Finished Bore
Pitch Diameter (in) 3.760
Outside Diameter (in) 3.715
Face Width (in) 0.546
Overall Length (in) 0.937
Hub Diameter (in) 1.500
Set Screw 2 x 10-32 @ 90°
Min. Bore (in) 0.375
Unit System Inch
Max. Bore (in) 1.25
Weight (lb) 0.68
Part Number Cross Reference 60-5P09-6A5, A 6A55-060NF0916, A6A55-060NF0916, P60-5MGT-09AL, 78450960
