60-8MX21-2012, Timing Pulley

60-8MX21-2012 - Cast Iron Powerhouse® MX Pulleys

60-8MX21-2012

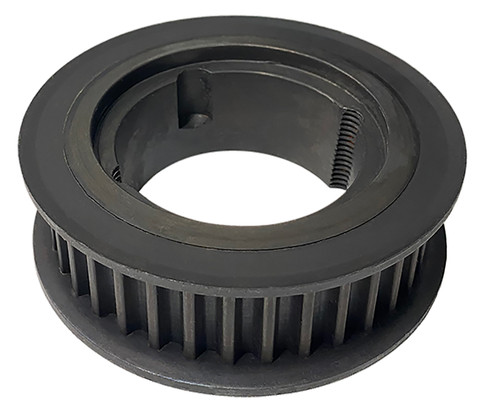

Click to Enlarge

60-8MX21-2012, Timing Pulley, Cast Iron, Black Oxide,

Learn more about 60-8MX21-2012 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 60-8MX21-2012
Teeth 60
Tooth Style 8MX
For Belt Width (mm) 21
Type A1F
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type TL
Bore (in) 2012
Pitch Diameter (in) 6.015
Outside Diameter (in) 5.952
Flange Diameter (in) 6.375
Face Width (in) 1.250
Overall Length (in) 1.250
Min. Bore (in) 0.500
Pulley Belt Width (in) 0.960
Unit System Inch
Bushing 2012
P.D. (mm) 153.00
O.D. (mm) 151.20
MOQ 1
Weight (lb) 7.10
Part Number Cross Reference 8MX-60S-21, 8MX60S21-2012, TB 8M-60S-21, B8MCS-60-21, 60G-8M-21-2012, 20839753, 481939, 8MPC60S21, GTR-60G-8M-21, GTR-60G-8M-21, 8MX-60S-21-2012, 60-8MX21-2012

Related Products

Comparable to: 8MX-60S-21, 8MX60S21-2012, TB 8M-60S-21, B8MCS-60-21, 60G-8M-21-2012, 20839753, 481939, 8MPC60S21, GTR-60G-8M-21, GTR-60G-8M-21, 8MX-60S-21-2012, 60-8MX21-2012
