600-D8P-50 Powerhouse™ Belts

600-D8P-50, TP600-8MGT-50

Product Details for 600-D8P-50

Comparable to: 600-D8P-50, TP600-8MGT-50

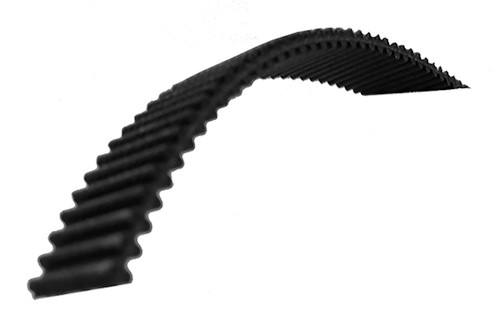

600-D8P-50, Timing Belt, Powerhouse, Neoprene / Fiberglass, Double Sided Timing Belt

Specifications

Product Number 600-D8P-50
Teeth 75
Tooth Style GT 8mm
Unit System Metric
Belt Type Double Sided
Belt Width (mm) 50.00
Pitch Length (mm) 600.00
Construction Neoprene
Reinforcement Fiberglass
Weight (lb) 0.47
List Price (1-9 Qty.) (USD) 169.66
Discount Price (10-24 Qty.) (USD) 161.17
Discount Price (25-49 Qty.) (USD) 152.69
Part Number Cross Reference 600-D8P-50, TP600-8MGT-50

Documentation

Download Catalog 2015_BBMAN_CATALOG_243.pdf
General Characteristics gen_char.html
Pulley Tolerances pulley_tol.html
TruMotion Features trumotionsyncdata_final_3-8-07.pdf
Belt Tensile Properties trumotionsyncdata_final_3-8-07.pdf
For custom parts click here custom.html
REACH Certification 600-D8P-50_REACH_cert
RoHS Certification 600-D8P-50_RoHS_cert
