60LH100, Timing Pulley

60LH100 - Cast Iron Imperial Pitch Pulleys

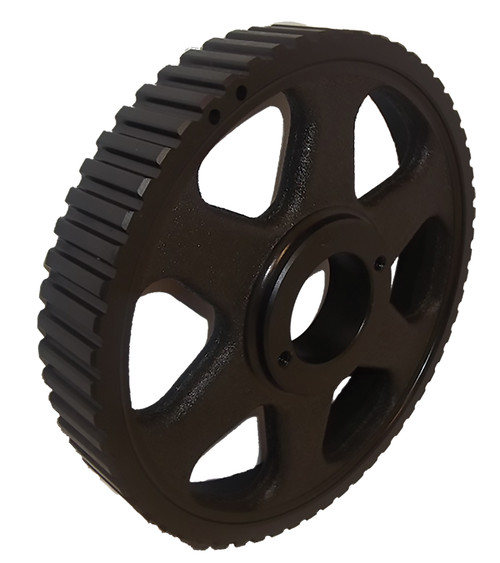

60LH100

60LH100 - Cast Iron Imperial Pitch Pulleys Line Drawing

Click to Enlarge

60LH100, Timing Pulley, Cast Iron

Learn more about 60LH100 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 60LH100
Teeth 60
Tooth Style L
For Belt Width (in) 1.0000
Type 18
Material Cast Iron
Bore Type Split Taper
Bore Description Bored for H Bushing
Pitch Diameter (in) 7.162
Outside Diameter (in) 7.132
Face Width (in) 1.250
Overall Length (in) 1.500
Min. Bore (in) 0.375
Unit System Inch
Bushing H
P.D. (mm) 182.00
O.D. (mm) 181.20
MOQ 1
Weight (lb) 5.03
Part Number Cross Reference 60LH100, 60LH100, 60LH100
