60LP075, Timing Pulley

60LP075 - Cast Iron Imperial Pitch Pulleys

60LP075

Click to Enlarge

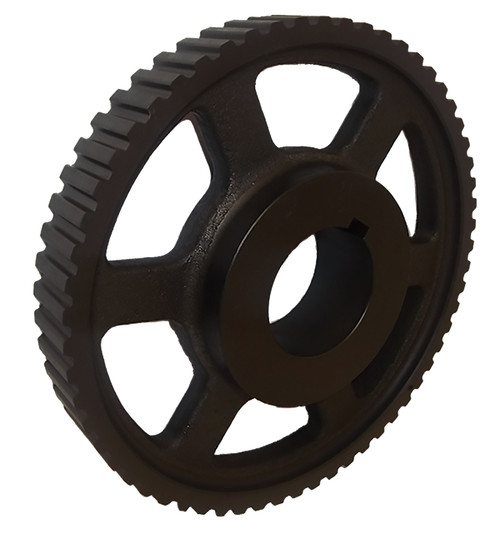

60LP075, Timing Pulley, Cast Iron

Learn more about 60LP075 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 60LP075
Teeth 60
Tooth Style L
For Belt Width (in) 0.7500
Type 13
Material Cast Iron
Bore Type Split Taper
Bore Description Bored for P1 Bushing
Pitch Diameter (in) 7.162
Outside Diameter (in) 7.132
Face Width (in) 1.000
Overall Length (in) 2.188
Min. Bore (in) 0.5
Unit System Inch
Bushing P1
P.D. (mm) 182.00
O.D. (mm) 181.20
MOQ 1
Weight (lb) 5.79
Part Number Cross Reference 60LP075, 60LP075, 60LP075
