60LP100, Timing Pulley

60LP100 - Cast Iron Imperial Pitch Pulleys

60LP100

Click to Enlarge

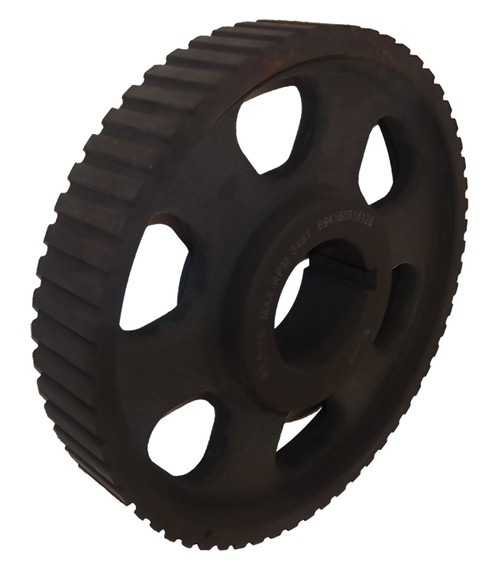

60LP100, Timing Pulley, Cast Iron

Learn more about 60LP100 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 60LP100
Teeth 60
Tooth Style L
For Belt Width (in) 1.0000
Type 13
Material Cast Iron
Bore Type Split Taper
Bore Description Bored for P1 Bushing
Pitch Diameter (in) 7.162
Outside Diameter (in) 7.132
Face Width (in) 1.250
Overall Length (in) 2.188
Min. Bore (in) 0.5
Unit System Inch
Bushing P1
P.D. (mm) 182.00
O.D. (mm) 181.20
MOQ 1
Weight (lb) 5.76
Part Number Cross Reference 60LP100, 60LP100, 60LP100
