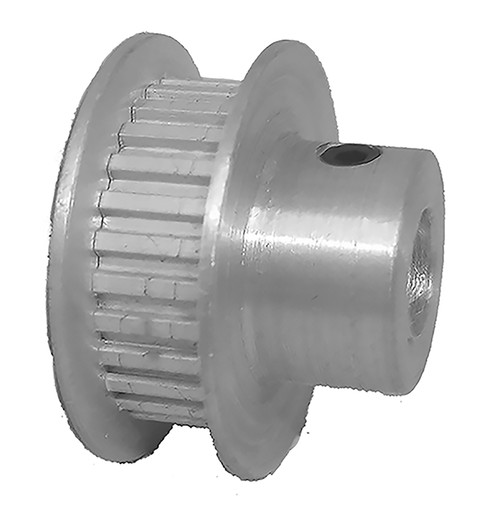

60LT187-6FA3, Timing Pulley

60LT187-6FA3 - Aluminum Imperial Pitch Pulleys

60LT187-6FA3

Click to Enlarge

60LT187-6FA3, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 60LT187-6FA3 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 60LT187-6FA3
Teeth 60
Tooth Style LT
For Belt Width (in) 0.1875
Type 6F
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore Description 1/4 Inch Finished Bore
Pitch Diameter (in) 1.558
Outside Diameter (in) 1.538
Flange Diameter (in) 1.730
Face Width (in) 0.340
Overall Length (in) 0.656
Hub Diameter (in) 1.222
Min. Bore (in) 0.25
Pulley Belt Width (in) 0.220
Unit System Inch
P.D. (mm) 40.00
O.D. (mm) 39.10
MOQ 1
Weight (lb) 0.16
Part Number Cross Reference A 6A6-60DF01808, A6A6-60DF01808, PT060C08L02T, 60M187-1A X 1/4, 60LT187-6FA3
Set Screw Quantity 2
