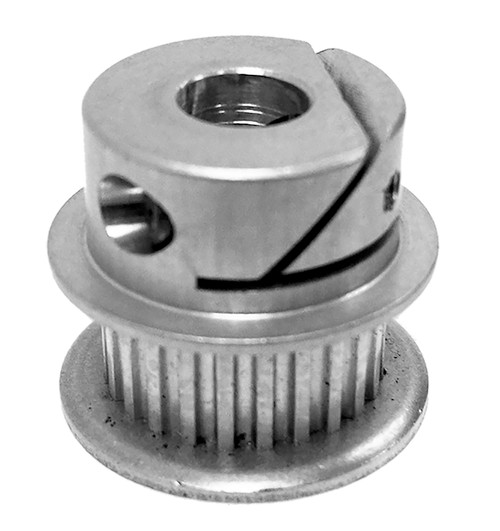

60MP025-IA3, Timing Pulley

60MP025-IA3 - E-Z Lock Hub Aluminum Imperial Pitch Pulleys

Product Details for 60MP025-IA3

Comparable to: 60MP025-IA3, A 6D16-060NF2508, A6D16-060NF2508

60MP025-IA3, Timing Pulley, Aluminum, Clear Anodized,

Learn more about 60MP025-IA3 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 60MP025-IA3
Teeth 60
Tooth Style MXL
For Belt Width (in) 0.250
Type 6FI
Material Aluminum
Finish Clear Anodized
Flange Material Aluminum
Bore Type Finished Bore
Bore (in) 1/4 Inch Finished Bore
Pitch Diameter (in) 1.528
Outside Diameter (in) 1.508
Flange Diameter (in) 1.730
Face Width (in) 0.405
Overall Length (in) 0.719
Hub Diameter (in) 0.750
Min. Bore (in) 0.250
Unit System Inch
Max. Bore (in) 0.25
Number & Screw Size 1 x 4-40
Weight (lb) 0.16
Part Number Cross Reference 60MP025-IA3, A 6D16-060NF2508, A6D16-060NF2508
