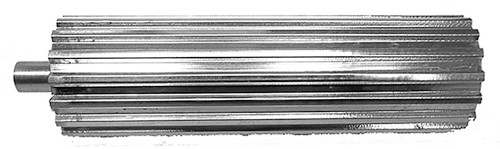

60T10-PS160A, Timing Pulley Stock

60T10-PS160A, A6A38M060T16, A 6A38M060T16, 60T10-PS-160

60T10-PS160A

60T10-PS160A, Timing Pulley Stock, Aluminum

Learn more about 60T10-PS160A Timing Pulley Stocks and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 60T10-PS160A
Teeth 60
Tooth Style T10mm
Material Aluminum
Pitch Diameter (in) 7.524
Outside Diameter (in) 7.445
Overall Length (in) 7.300
Unit System Metric
Min. Usable Length (in) 6.300
P.D. (mm) 191.10
O.D. (mm) 189.10
Min. Usable Length (mm) 160.00
Overall Length (mm) 185.00
MOQ 1
Weight (lb) 26.53
Part Number Cross Reference A 6A38M060T16, A6A38M060T16, T10-60S-PS-160A, 60T10-PS-160A, T1060, 60T10-PS160A, 60T10-PS160A
Shank Length (in) 1.0000

Comparable to: A 6A38M060T16, A6A38M060T16, T10-60S-PS-160A, 60T10-PS-160A, T1060, 60T10-PS160A, 60T10-PS160A

Documentation

Download Catalog
General Characteristics
For custom parts click here
REACH Certification
RoHS Certification
