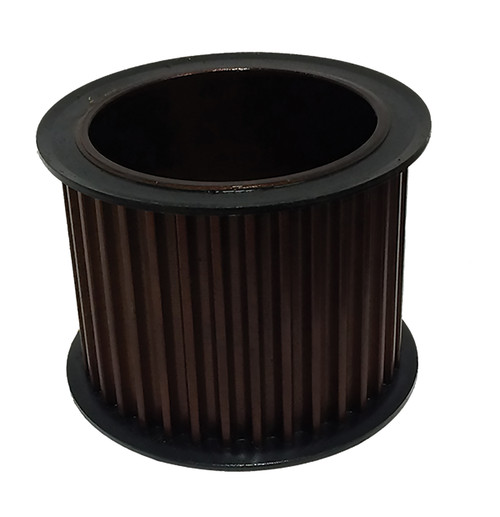

63-8MX62-3020, Timing Pulley

63-8MX62-3020 - Cast Iron Powerhouse® MX Pulleys

63-8MX62-3020

63-8MX62-3020 - Cast Iron Powerhouse® MX Pulleys Line Drawing

Click to Enlarge

63-8MX62-3020, Timing Pulley, Cast Iron, Black Oxide,

Learn more about 63-8MX62-3020 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 63-8MX62-3020
Teeth 63
Tooth Style 8MX
For Belt Width (mm) 62.00
Type A1F
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type TL
Bore Description Bored for 3020 Bushing
Pitch Diameter (in) 6.316
Outside Diameter (in) 6.253
Flange Diameter (in) 6.772
Face Width (in) 2.906
Overall Length (in) 2.906
Min. Bore (in) 0.875
Pulley Belt Width (in) 2.670
Unit System Inch
Bushing 3020
P.D. (mm) 160.00
O.D. (mm) 158.80
MOQ 1
Weight (lb) 9.82
Part Number Cross Reference 8MX-63S-62, B8MCS-63-62, 63G-8M-62-3020, 8MX-63S-62-3020 HT500 SPKT, 8MPC63S62, 63-8MX62-3020, 482007, 63-8MX62-3020
