63V2500E, V-Belt Pulley

63V2500E, 3V2506, 6-3V2.5, 6/3V2500E

Product Details for 63V2500E

Comparable to: QD6/3V25.00, 78726250, 6 3V 2500 E, 6-3V2500.E, 63V2500E, 3V25.0-6-E PULLEY, 20180560, 6/3V25.0–E, 3V2506, 63V25.0, 3V25.0-6-E, 6/3V2500E, 6-3V2.5, 6-3V250

Click to Enlarge

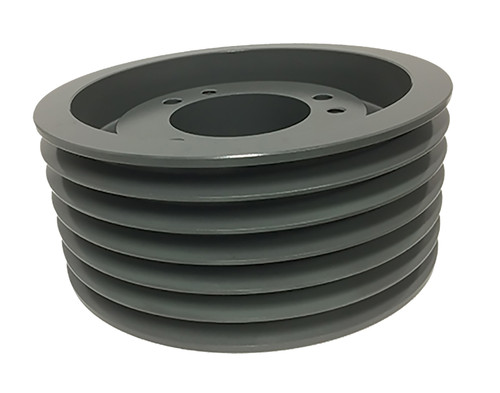

63V2500E, V-Belt Pulley, Cast Iron

Learn more about 63V2500E V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 63V2500E
Type D3
Material Cast Iron
Bore Type QD
Bore (in) E
Pitch Diameter (in) 24.950
Outside Diameter (in) 25.000
Min. Bore (in) 0.875
Unit System Inch
Bushing E
Max. Bore (in) 3.500
E (in) 5/32
L (in) 2 3/4
M (in) 1/8
MOQ 1
Sheave Type 3V
For Belt Type 3V
Weight (lb) 65.00
Part Number Cross Reference QD6/3V25.00, 78726250, 6 3V 2500 E, 6-3V2500.E, 63V2500E, 3V25.0-6-E PULLEY, 20180560, 6/3V25.0–E, 3V2506, 63V25.0, 3V25.0-6-E, 6/3V2500E, 6-3V2.5, 6-3V250
Grooves 6
