64-14P115-4545, Timing Pulley

64-14P115-4545

Click to Enlarge

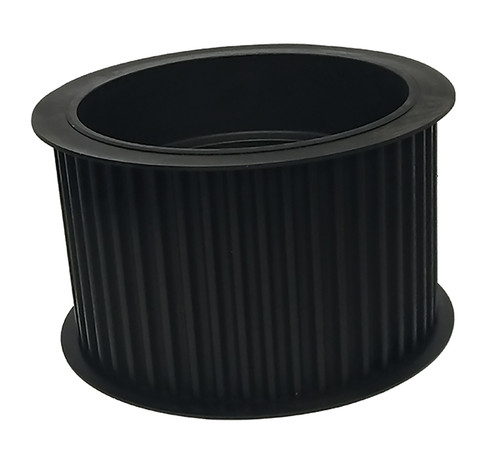

64-14P115-4545, Timing Pulley, Cast Iron, Black Oxide,

Learn more about 64-14P115-4545 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	64-14P115-4545
Teeth	64
Tooth Style	14P
For Belt Width (mm)	115.00
Type	A1F
Material	Cast Iron
Finish	Black Oxide
Flange Material	Steel
Bore Type	TL
Bore Description	Bored for 4545 Bushing
Pitch Diameter (in)	11.229
Outside Diameter (in)	11.119
Flange Diameter (in)	11.750
Face Width (in)	5.250
Overall Length (in)	5.250
Min. Bore (in)	1.9375
Pulley Belt Width (in)	4.930
Unit System	Inch
Bushing	4545
P.D. (mm)	285.00
O.D. (mm)	282.40
MOQ	1
Weight (lb)	81.00
Part Number Cross Reference	P64-14MGT-115, B6414M115TL, P64-14M-115-4545, 20182847, P64-14M-115-4545 HT250 SPKT, P6414M115TL, 64-14P115-4545, 114527, 64-14P115-4545
