64-14P55-3020, Timing Pulley

64-14P55-3020 - Cast Iron Powerhouse® Pulleys

Product Details for 64-14P55-3020

Comparable to: P64-14MGT-55, 2763845, B6414M55TL, P64-14M-55-3020, 20182849

Click to Enlarge

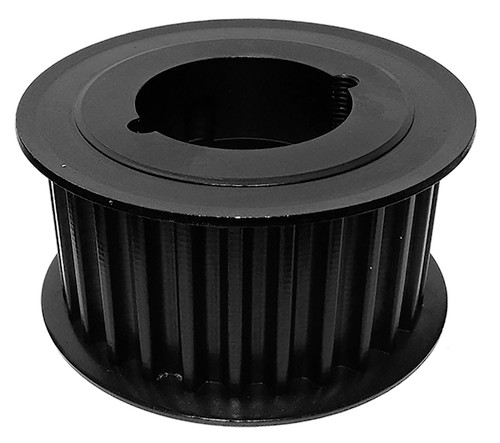

64-14P55-3020, Timing Pulley, Cast Iron, Black Oxide,

Learn more about 64-14P55-3020 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 64-14P55-3020
Teeth 64
Tooth Style 14P
For Belt Width (mm) 55
Type A1F
Material Cast Iron
Finish Black Oxide
Flange Material Steel
Bore Type TL
Bore (in) 3020
Pitch Diameter (in) 11.229
Outside Diameter (in) 11.119
Flange Diameter (in) 11.750
Face Width (in) 2.750
Overall Length (in) 2.750
Min. Bore (in) 0.875
Pulley Belt Width (in) 2.430
Unit System Inch
Bushing 3020
MOQ 1
Weight (lb) 47.48
Part Number Cross Reference P64-14MGT-55, 2763845, B6414M55TL, P64-14M-55-3020, 20182849
