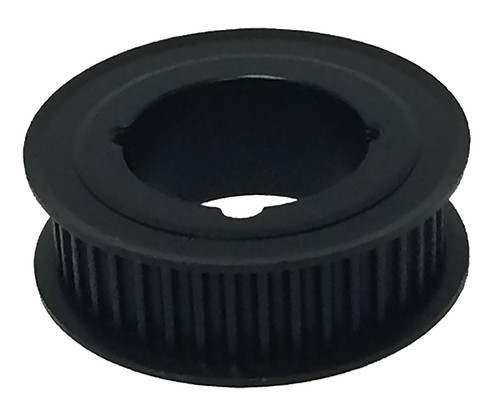

64-5P15-1610, Timing Pulley

64-5P15-1610 - Cast Iron Powerhouse® Pulleys

64-5P15-1610

Click to Enlarge

64-5P15-1610, Timing Pulley, Cast Iron, Black Oxide,

Learn more about 64-5P15-1610 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 64-5P15-1610
Teeth 64
Tooth Style 5P
For Belt Width (mm) 15
Type B1F
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type TL
Bore Description Bored for 1610 Bushing
Pitch Diameter (in) 4.010
Outside Diameter (in) 3.965
Flange Diameter (in) 4.170
Face Width (in) 0.880
Overall Length (in) 1.000
Min. Bore (in) 0.5
Pulley Belt Width (in) 0.710
Unit System Inch
Bushing 1610
P.D. (mm) 102.00
O.D. (mm) 100.70
MOQ 1
Weight (lb) 2.04
Part Number Cross Reference P64-5MGT-15, 64-5P15-1610
