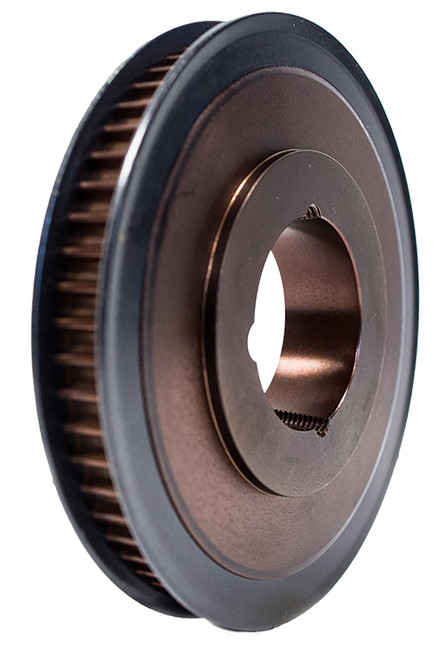

64-8P12-1610, Timing Pulley

64-8P12-1610 - Cast Iron Powerhouse® Pulleys

64-8P12-1610

64-8P12-1610 - Cast Iron Powerhouse® Pulleys Line Drawing

Click to Enlarge

64-8P12-1610, Timing Pulley, Cast Iron, Black Oxide,

Learn more about 64-8P12-1610 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 64-8P12-1610
Teeth 64
Tooth Style 8P
For Belt Width (mm) 12.00
Type B1F
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type TL
Bore Description Bored for 1610 Bushing
Pitch Diameter (in) 6.416
Outside Diameter (in) 6.362
Flange Diameter (in) 6.772
Face Width (in) 0.750
Overall Length (in) 1.000
Min. Bore (in) 0.5
Pulley Belt Width (in) 0.610
Unit System Inch
Bushing 1610
P.D. (mm) 163.00
O.D. (mm) 161.60
MOQ 1
Weight (lb) 6.68
Part Number Cross Reference P64-8MGT-12, 64-8P12-1610, 64-8P12-1610
