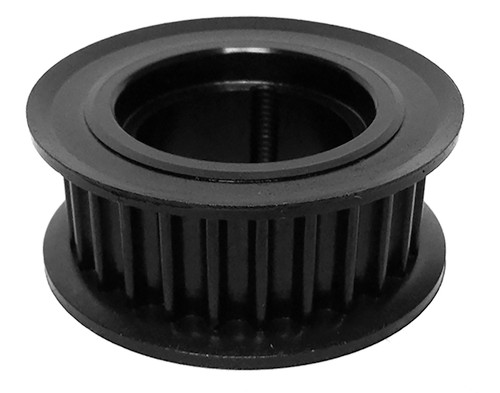

64-8P20-2012, Timing Pulley

64-8P20-2012

Click to Enlarge

64-8P20-2012, Timing Pulley, Cast Iron, Black Oxide,

Learn more about 64-8P20-2012 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	64-8P20-2012
Teeth	64
Tooth Style	8P
For Belt Width (mm)	20.00
Type	B1F
Material	Ductile Iron
Finish	Black Oxide
Flange Material	Steel
Bore Type	TL
Bore Description	Bored for 2012 Bushing
Pitch Diameter (in)	6.416
Outside Diameter (in)	6.362
Flange Diameter (in)	6.772
Face Width (in)	1.130
Overall Length (in)	1.250
Min. Bore (in)	0.5
Pulley Belt Width (in)	0.890
Unit System	Inch
Bushing	2012
P.D. (mm)	163.00
O.D. (mm)	161.60
MOQ	1
Weight (lb)	7.80
Part Number Cross Reference	P64-8MGT-20, B648M20TL, P64-8M-20-2012, 20182851, P64-8M-20-2012 HT250 SPKT, P648M20TL, 64-8P20-2012, 112863, 64-8P20-2012
