64-8P50-2517, Timing Pulley

64-8P50-2517 - Cast Iron Powerhouse® Pulleys

Product Details for 64-8P50-2517

Comparable to: P64-8MGT-50, 77085064, 2763209, B648M50TL, P64-8M-50-2517, 20182853

Click to Enlarge

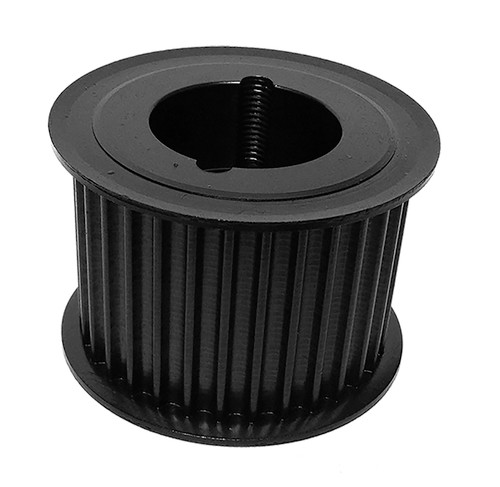

64-8P50-2517, Timing Pulley, Cast Iron, Black Oxide,

Learn more about 64-8P50-2517 Timing Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number 64-8P50-2517
Teeth 64
Tooth Style 8P
For Belt Width (mm) 50
Type A1F
Material Ductile Iron
Finish Black Oxide
Flange Material Steel
Bore Type TL
Bore (in) 2517
Pitch Diameter (in) 6.416
Outside Diameter (in) 6.362
Flange Diameter (in) 6.772
Face Width (in) 2.380
Overall Length (in) 2.380
Min. Bore (in) 0.500
Pulley Belt Width (in) 2.140
Unit System Inch
Bushing 2517
MOQ 1
Weight (lb) 13.20
Part Number Cross Reference P64-8MGT-50, 77085064, 2763209, B648M50TL, P64-8M-50-2517, 20182853
