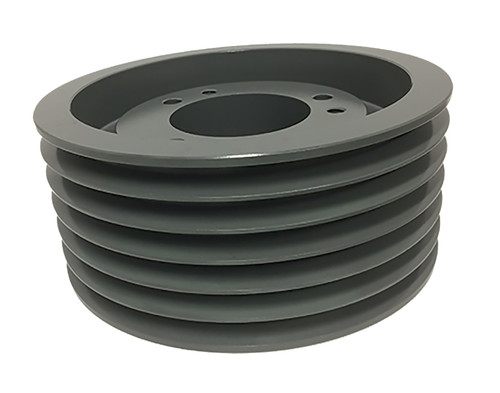

65V1130E, V-Belt Pulley

65V1130E

65V1130E, V-Belt Pulley, Cast Iron

Learn more about 65V1130E V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	65V1130E
Type	A-3
Material	Cast Iron
Bore Type	QD
Bore Description	Bored for E Bushing
Pitch Diameter (in)	11.200
Outside Diameter (in)	11.300
Face Width (in)	4.438
Min. Bore (in)	0.875
Unit System	Inch
Bushing	E
MOQ	1
Sheave Type	5V
For Belt Type	5V
Weight (lb)	39.80
Part Number Cross Reference	QD6/5V11.30, 6 5V 1130 E, 6-5V1130.E, 65V1130E, 5V11.3-6-E, 20180683, 6-5V11.30-E SHEAVE, 5V1136, 65V11.3, 5V11.3-6-E, 6/5V1130E, 6-5V11.30, 65V1130E, 6/5V1130E, 455379, 65V1130E
Grooves	6
