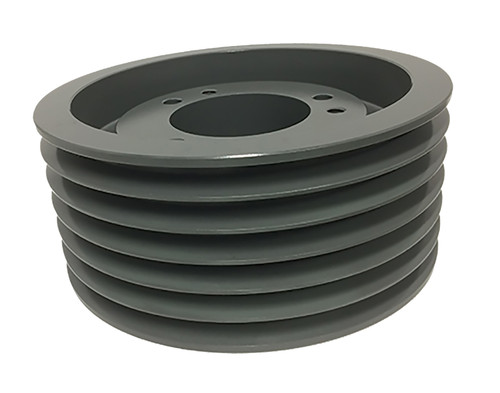

65V1400F, V-Belt Pulley

65V1400F

65V1400F, V-Belt Pulley, Cast Iron

Learn more about 65V1400F V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	65V1400F
Type	B-3
Material	Cast Iron
Bore Type	QD
Bore Description	Bored for F Bushing
Pitch Diameter (in)	13.900
Outside Diameter (in)	14.000
Face Width (in)	4.438
Min. Bore (in)	1
Unit System	Inch
Bushing	F
MOQ	1
Sheave Type	5V
For Belt Type	5V
Weight (lb)	66.00
Part Number Cross Reference	QD6/5V14.00, 6 5V 1400 F, 6-5V1400.F, 65V1400F, 5V14.0-6-F, 20180728, 6-5V14.00-F SHEAVE, 5V1406, 65V14.0, 5V14.0-6-F, 6/5V1400F, 6-5V14.00, 65V1400F, 6/5V1400F, 455383, 65V1400F
Grooves	6
