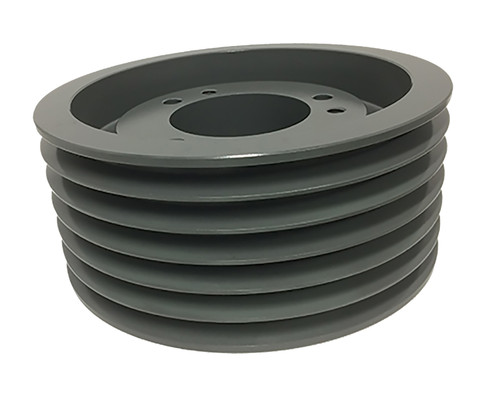

65V670SF, V-Belt Pulley

65V670SF

65V670SF, V-Belt Pulley, Cast Iron

Learn more about 65V670SF V-Belt Pulleys and B&B Manufacturing, Inc. View product specifications, download a CAD file in your preferred format, or purchase online.

Specifications

Product Number	65V670SF
Type	A-1
Material	Cast Iron
Bore Type	QD
Bore Description	Bored for SF Bushing
Pitch Diameter (in)	6.600
Outside Diameter (in)	6.600
Face Width (in)	4.438
Min. Bore (in)	0.5
Unit System	Inch
Bushing	SF
MOQ	1
Sheave Type	5V
For Belt Type	5V
Weight (lb)	20.00
Part Number Cross Reference	QD6/5V6.70, 6 5V 670 SF, 6-5V670.SF, 65V670SF, 5V6.7-6-SF, 20180863, 6-5V6.70-SF SHEAVE, 5V676, 65V6.7, 5V6.7-6-SF, 6/5V670SF, 6-5V6.70, 65V670SF, 6/5V670SF, 455369, 65V670SF
Grooves	6
